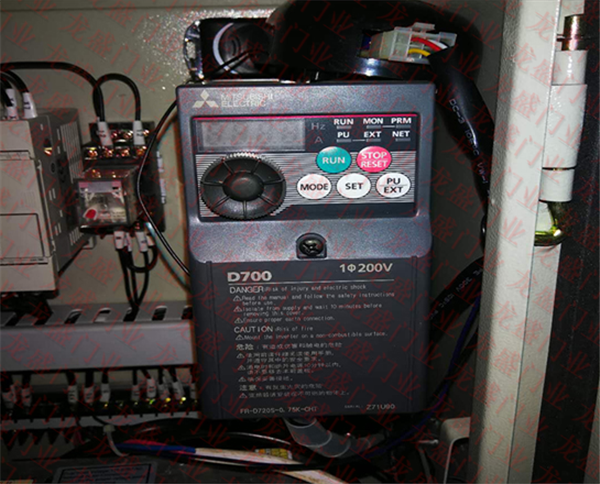

「丹東堆積門」快速門三菱變頻器接線方法
Connection Method of Mitsubishi Inverter for "Dandong Accumulation Gate" Fast Gate
1，推薦電路電線規格0.3mm2~0.75mm2
1. Recommended circuit and wire specifications 0.3mm2-0.75mm2
2，接線方法
2. Wiring method
2。控制電路接線時請將電線外皮拉開，應采用三角形端子接線。單線時可將外皮直接拉開。
2. Wiring methodInsert the bar terminal or single wire into the junction for connection.
將棒狀端子或單線插入接線口進行接線。
Insert the bar terminal or single wire into the junction for connection.
1)電線外皮的剝開尺寸以下所示。外皮剝開過長會有與鄰線發生短路的危險。剝開過短電線可能會脫落。
1) The stripping size of the outer skin of the wire is shown below. If the skin is stripped too long, there will be a risk of short circuit with the adjacent lines. Stripping too short a wire may come off.
2)壓接棒狀端子。
2) Pressing rod terminal.
使電線的芯線部分從套管露出約0~0.5mm后插入。
The core part of the wire is inserted after exposing about 0-0.5mm from the casing.
壓接后，認棒狀端子的表面，未正確壓接或者側面有損傷的棒狀端子不要應用。
After pressing, do not apply the rod terminal which recognizes the surface of the rod terminal, does not press correctly or has side damage.
3）將電線插入端子。
3) Insert the wire into the terminal.
絞線狀態且未應用棒狀端子時，請用一字螺絲刀將開關按鈕按入深處，然后在插入電線。
When the stranded wire is in state and the rod terminal is not used, press the switch button deep with a screwdriver, and then insert the wire.
注意：若直接連接絞線，為避免絞線與鄰近端子或者接線發生短路或斷路，請在接線前對電線進行充分絞合。
Note: If the stranded wire is directly connected, in order to avoid short circuit or break between the stranded wire and the adjacent terminals or wiring, please fully strand the wire before wiring.
請將一字螺絲刀對準開關按鈕筆直壓下，刀頭的滑動可能會造成變頻器損壞或者受傷事故。
Please align a screwdriver with the switch button and press it down directly. The sliding of the tool head may cause damage or injury to the frequency converter.
「丹東堆積門」快速門三菱變頻器接線方法
Connection Method of Mitsubishi Inverter for "Dandong Accumulation Gate" Fast Gate
