快速門展示
作者：石家莊快速門批發 發布時間： 2019/7/1 17:41:03
「快速門定做」簽訂石家莊普泰爾公司堆積門項目
"Customized Fast Gate" Signed Shijiazhuang Putaier's Accumulated Gate Project
龍盛門業擁有先進的生產設備，并引進國外最新生產技術，在國內快速門制造業享有一定聲譽，與眾多知名地產公司和企業合作。
Longshengmen has advanced production equipment and imports the latest production technology from abroad. It enjoys a certain reputation in domestic express door manufacturing industry and cooperates with many well-known real estate companies and enterprises.
本地與普泰爾公司合作廠房快速門項目，地點位于石家莊市，右石家莊辦事處工作人員進行量尺，并負責安裝及售后工作。
The project is located in Shijiazhuang City. The staff of the right Shijiazhuang office are responsible for the installation and after-sales work.

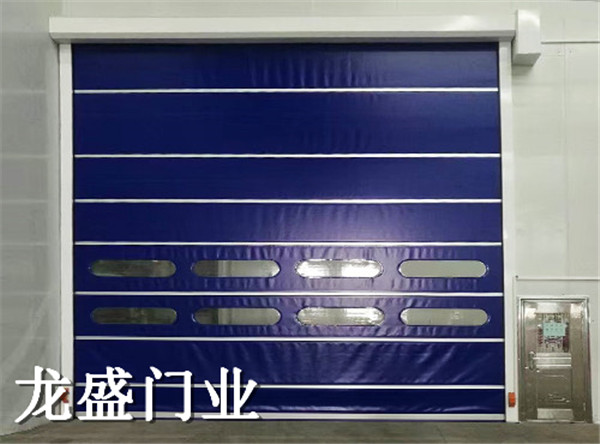

本項目快速門尺寸為3.5米寬，7.9米高，共六樘。
The size of the fast door of this project is 3.5 meters wide and 7.9 meters high, totaling six diaphragms.
配置說明：
Configuration description:
1、框架材質：4.0mm厚銀白工業鋁合金立柱。
1. Frame material: 4.0mm thick silver-white industrial aluminium alloy column.
2、簾布：高密度聚錄乙烯涂層熱熔織物，材料厚度0.8mm-1.0mm,多色可選。
2. Curtain cloth: high density polyvinyl film coated hot melt fabric, material thickness 0.8mm-1.0mm, multi-color optional.
3、動力系統：IP54專用剎車制動馬達，1.5KW220V或三相四電，快速專用電機，變頻器，行程編碼器，微電腦變頻控制電箱（三菱CPU）
3. Power system: IP54 special brake motor, 1.5KW220V or three-phase four-power, fast special motor, frequency converter, stroke encoder, microcomputer frequency conversion control unit (Mitsubishi CPU)
4、門體運行速度：0.8--1.5m/s （變頻可調速）
4. Door speed: 0.8-1.5m/s (variable frequency adjustable speed)
5、安全保護：保護控制關斷開關火三相電源保護；控制操作電路保護。溫敏斷電器電機保護。
5. Safety protection: protection, control, switching off, three-phase power supply protection, control and operation circuit protection. Temperature-sensitive breaker motor protection.
6、門梁抗拉強度 ：175kn/m
6. Tensile Strength of Door Beam: 175kn/m
7、使用溫度：-10℃+70℃/超耐寒區域--40℃
7. Service temperature: -10 C+70 C/Ultra-cold-resistant area-40 C
8、透明視窗：PVC透明軟板，材料厚度1.0mm，增加安全及管理方便性，配整體橫向透明視窗。
8. Transparent window: PVC transparent soft board, material thickness 1.0 mm, increase safety and management convenience, with the overall transverse transparent window.
9、抗風能力：25m/s配鋁合金抗風筋。
9. Wind resistance: 25m/s with aluminum alloy wind bar.
10、密封性能：底端裝有彈性的PVC基布，可與不平坦的地面緊密貼合。
10. Sealing performance: The bottom is equipped with elastic PVC base cloth, which can be closely bonded with uneven ground.
11、安全配置：標準紅外線光電保護、警示燈、防撞柱、停電手動搖桿。
11. Safety Configuration: Standard infrared photoelectric protection, warning lights, anti-collision column, power failure manual rocker.
「快速門定做」簽訂石家莊普泰爾公司堆積門項目
"Customized Fast Gate" Signed Shijiazhuang Putaier's Accumulated Gate Project
湖南普泰爾環境股份有限公司致力于城市公共衛生環境的治理與研究。
Hunan Putaier Environment Co., Ltd. is committed to the governance and research of urban public health environment.
公司的主要產品有生物復合劑-A、生物復合劑-B、輔助劑、纖維噴涂覆蓋、垃圾中轉站智能噴霧除臭機、遠程霧炮除臭設備。
The main products of the company include biological complex agent -A, biological complex agent -B, auxiliary agent, fiber spraying coating, intelligent garbage spray station deodorizer, and remote fog gun deodorizing equipment.
公司曾獲得湖南省科學技術廳、湖南省財政廳、湖南省國家稅務局、湖南省地方稅務局頒發的高新技術企業證書。
The company has obtained certificates of high-tech enterprises issued by Hunan Science and Technology Department, Hunan Finance Department, Hunan State Taxation Bureau and Hunan Local Taxation Bureau.
